We currently carry a wide range of window moulds for a variety of fixed wing aircraft and helicopters, such as Cessna, Piper, Beechcraft, Bell and Robinson to name a few. Windows can be manufactured according to sample and trimmed to sample size to ensure the perfect fit. Alternatively, windows can be ordered using the aircraft specifications, further trimming may be required for fitting by your maintenance organisation.
Composite aircraft components available include wing, elevator and rudder tips, wheel spats, fairings, cowlings, strut cuffs and tail cones. As with the windows, we carry the moulds for composite components for a variety of different aircraft.
To assist you in the ordering process, please see the part numbering guide below for aircraft and helicopter windows and composite components.

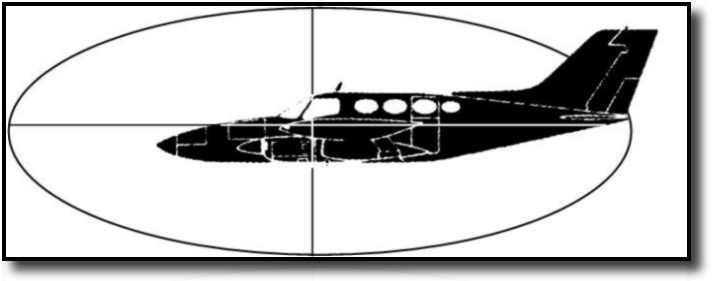

1. Upper Cockpit zone
3. Upper Cabin zone
2. Lower Cockpit zone
4. Lower Cabin zone
Part number : C340-301-01
Key to part number:
C340 = Aircraft identification
3 = Zone
01 = Number from front in zone starting with 01
0 = Outer, 1 = Inner, 2 = Vent or part of, 3 = Bubble type
1 = Left hand, 2 = Right hand, 3 = Centre or unhanded
From Pilot's perspective
eg. B206L-201-02 = Bell Longranger chin window Right Hand
Landing Gear Cuff

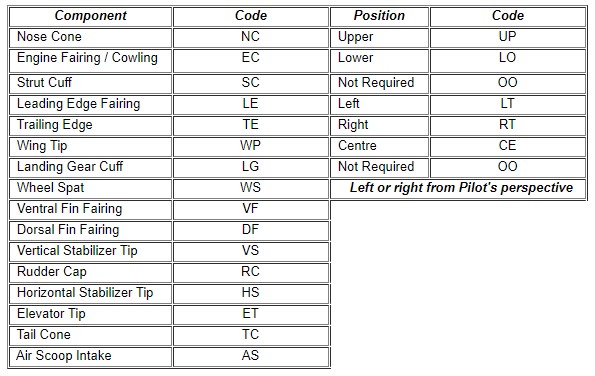

Part number: (aircraft Identity)-(Component)-(Upper/Lower)-(Left/Right/Centre)
e.g. C182-SC-UP-LT - Cessna 182 Strut Cuff, Upper Left hand
